| Steel Type |
Weight (KG) per metre (M) |
IPE BEAMS  |
|
| IPE 160 (6″ x 3″) |
15.8 |
| IPE 180 (7″ x 3.5″) |
18.8 |
| IPE 200 (8″ x 4″) |
22.4 |
| IPE 220 (9″ x 4.5″) |
26.2 |
UNIVERSAL COLUMN  |
|
| UC 152x152x23 (6″x 6″) |
23 |
| UC 203x203x46(8″ x 8″) |
46 |

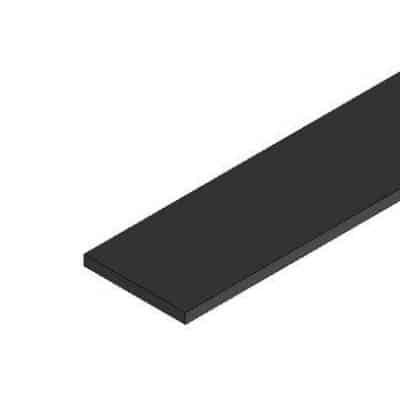

MILD STEEL FLAT |
|
| 20x3mm |
0.5 |
| 25x6mm |
1.2 |
| 40x6mm |
1.9 |
| 40x10mm |
3.1 |
| 50x6mm |
2.4 |
| 50x10mm |
3.9 |
| 75x6mm |
3.5 |
| 75x10mm |
5.9 |
| 100x6mm |
4.7 |
| 100x8mm |
6.3 |
| 100x10mm |
7.9 |
| 110x10mm |
8.6 |
| 150x6mm |
7.1 |
| 150x10mm |
11.8 |
| 150x12mm |
14.1 |
| 200x6mm |
9.4 |
| 200x10mm |
15.7 |
| 200x12mm |
18.8 |

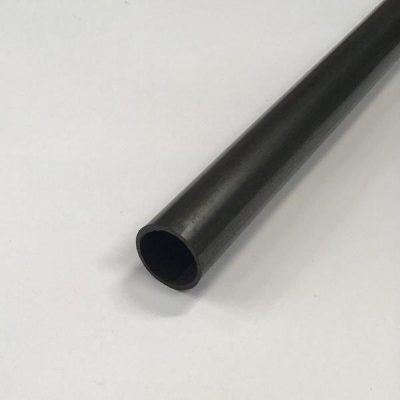

BLACK PIPE |
|
| 26.9×2.5mm 1″x1/8″ |
1.5 |
| 33.7×3.2mm 1 1/4″x1/8″ |
2.4 |
| 48.3×3.25mm 2″x1/8″ |
3.6 |
| 60.3×3.2mm 2 1/2″x1/8″ |
4.5 |
| 76.1×3.6mm 3″x1/8″ |
6.4 |
| 90x4mm 3 1/2″x3/16″ |
8.5 |

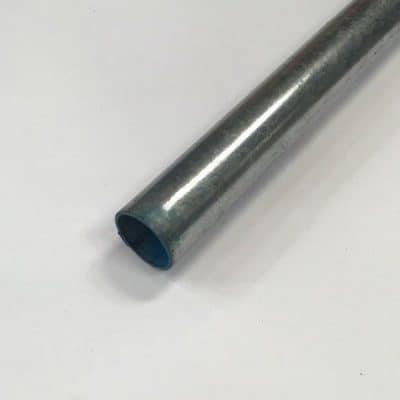

GALVINISED PIPE |
|
| 26.9×2.5mm 1″x1/8″ |
1.5 |
| 33.7×3.2mm 1 1/4″x1/8″ |
2.4 |
| 48.3×3.25mm 2″x1/8″ |
3.6 |
| 60.3×3.2mm 2 1/2″x1/8″ |
4.5 |
| 76.1×3.6mm 3″x1/8″ |
6.4 |
| 90x4mm 3 1/2″x3/16″ |
8.5 |

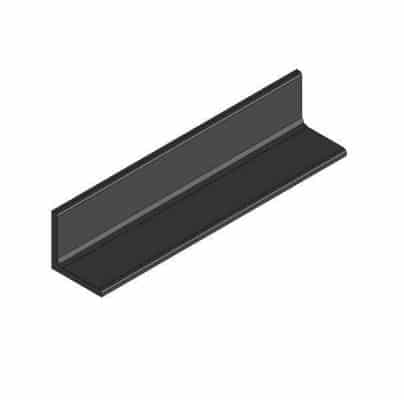

MILD STEEL ANGLE |
|
| 25x25x3mm |
1.1 |
| 40x40x5mm |
3.0 |
| 50x50x6mm |
4.5 |
| 60x60x6mm |
5.4 |
| 70x70x6mm |
6.4 |
| 80x80x6mm |
7.3 |
| 100x100x10mm |
15.0 |
| 75x50x6mm |
5.7 |
| 100x65x7mm |
8.8 |

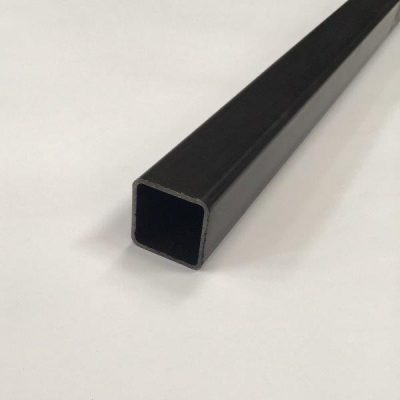

HOLLOW BOX SECTION |
|
| 25x25x2.5mm 1″ x 1″ |
1.7 |
| 30x30x2.5mm 1 1/4″ x1 1/4″ |
2.1 |
| 40x40x2.5mm 1 1/2″ x 1 1/2″ |
2.9 |
| 50x50x3mm 2″ x 2″ |
4.4 |
| 60x60x3mm 2 1/2″ x 2 1/2″ |
5.3 |
| 70x70x3mm 2 3/4″ x 2 3/4″ |
6.3 |
| 80x80x3mm 3 ” x 3″ |
7.2 |
| 90x90x3mm 3 1/2″ x 3 1/2″ |
8.2 |
| 100x100x4mm 4″ x 4″ |
12.0 |
| 150x150x4mm 6″ x 6″ |
18.3 |
| 50x25x2.5mm 2″ x 1″ |
2.7 |
| 80x40x3mm 3″ x 1 1/2″ |
5.3 |
| 100x50x3mm 4″ x 2″ |
6.8 |

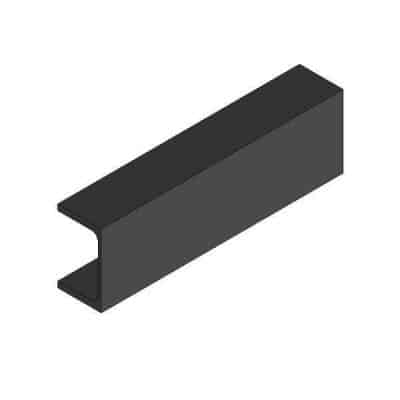

FLANGED CHANNEL |
|
| 76x38mm |
6.7 |
| 102x51mm |
10.4 |
| 127x64mm |
15.0 |
| 152x76mm |
18.0 |
SOLID ROUND BAR |
|
| 8mm (5/16″) |
0.39 |
| 10mm (3/8″) |
0.62 |
| 12mm (1/2″) |
0.89 |
| 16mm (5/8″) |
1.58 |
| 20mm (3/4″) |
2.47 |
| 25mm (1″) |
3.85 |
| 32mm (1 1/4″) |
6.31 |
